Bulk Loading Gun Nozzles

1/8″ Ribbon Bead Nozzle Small

• Plastic nozzle for applying 1/8″ thick ribbons of sealant. Tilt tool upward for thinner ribbon.
• Width is 5/8″ but can be modified easily with a utility knife to dispense at up to 1-1/2″ wide (1/4″ increments).
• Fits all 2″ diameter barrel Albion professional bulk and sausage guns with 421-G01 metal ring cap (DL-45, DL-59, etc.) including B-Line Bulk guns (B12B20, B12B30, etc.)
• To use with B-Line Sausage Guns (B12S20, B26S20, etc.) substitute the 868-1 front cap.

1/8″ Ribbon Bead Nozzle Large

• Plastic nozzle for applying 1/8″ thick ribbons of sealant.  Tilt tool upward for thinner ribbon.
• Width is 2″ but can be modified easily with a utility knife to dispense at up to 4″ wide (1/2″ increments).
• Works with sausage, bulk and quart cartridge guns.
• Ideal for use with our B12S20 sausage gun (see below).
• Two-piece construction.
• Designed to apply liquid air barrier sealants and flashings faster than with a trowel.

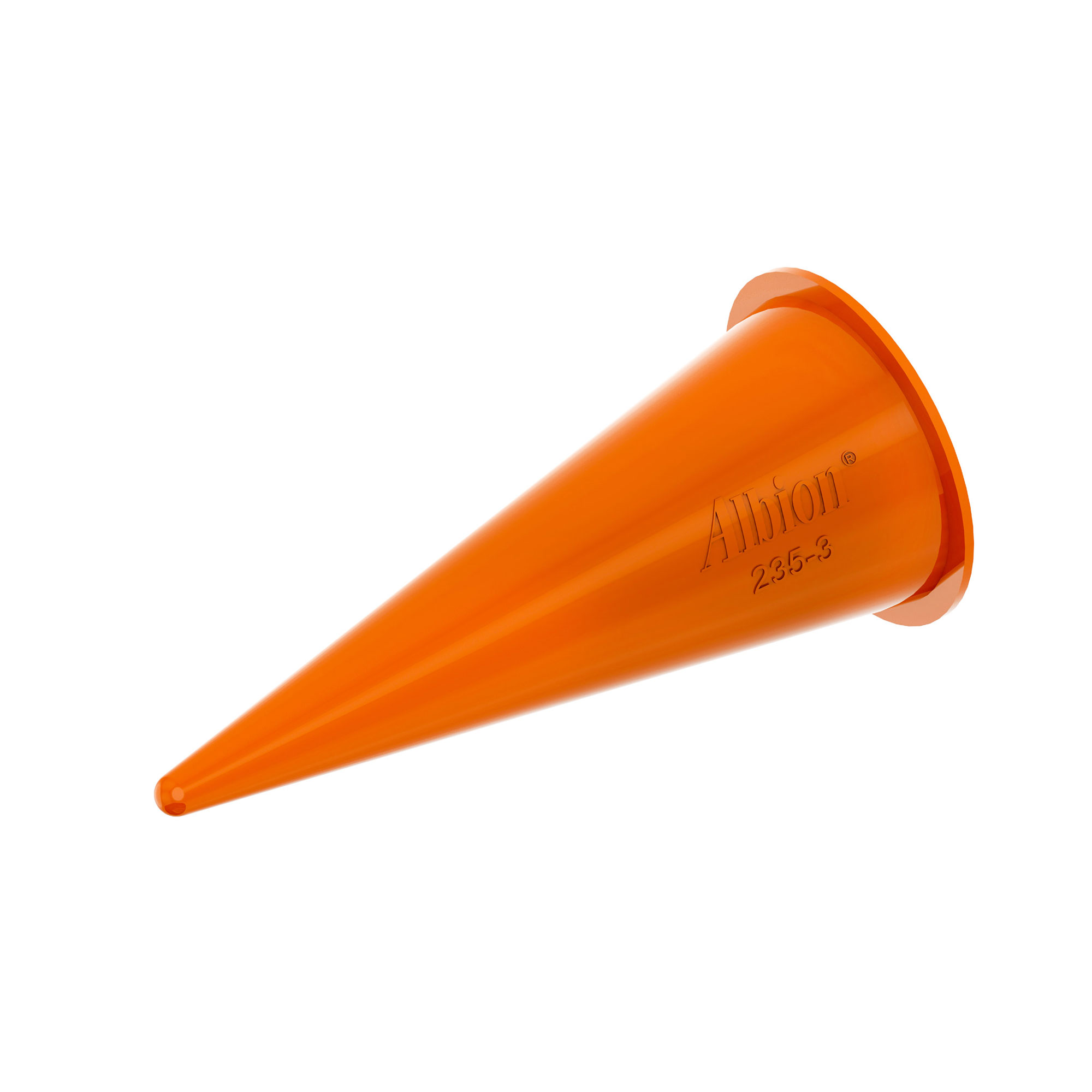

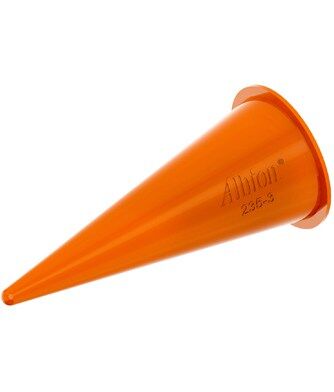

Standard Cone Nozzle

• Classic Albion caulk gun cone nozzle for 2″ diameter Special Deluxe guns (DL-45, DL-59, etc.)
• Tough enough to use against brick or concrete. HDPE plastic won’t scratch glass or metal.
• 5″ Long nozzles can be cut to any size opening from 1/8″ to 1-3/4″ with utility knife.
• Use with #421-G01 ring cap (front cap).

Bulk Loading Guns:

-Are used to apply chinking or caulking from a 5 Gallon Pail
-Can utilize various nozzles
-Increase productivity
Decrease physical effort required

Bulk loading guns are used:

-When using 5 Gallon pails and with a follow plate

Varies
