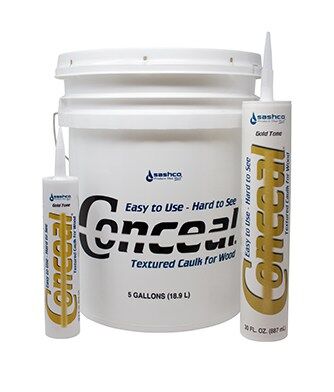

Conceal Textured Caulk for Wood delivers performance that’s hard to see. Conceal’s 7 colors blend in with the most popular stains used on log and wood homes. Conceal Textured Caulk for Wood’s light texture simulates the natural roughness of wood. The combination of color and texture makes it hard to see where the caulking ends and the wood begins. Instead, they just blend together. Although the caulking is hard to see, Conceal delivers performance.
CONCEAL TEXTURED CAULK FOR WOOD FEATURES
- Is easy to apply with a standard caulking gun
- Has superior elongation, memory and adhesion
- Eliminates air and water infiltration
- Ideal for exterior and interior use
- Remains flexible long term to allow for log movement
- Cleans up with soap and water
- Is resistant to rainfall in 1-4 hours
- Has a very low VOC formula
- Frontier Gold
- Harvest Wheat
- Gold Tone
- Brown Tone
- Red Tone
- Grizzly Brown
|Joint Size (WxD)||5 GAL Pail||30 OZ Tube||10.5 OZ Tube|
|1/ 4 ” x 1 / 4 ”||1540 LF||70.0 LF||25.7 LF|
|3 / 8 ” x 1 / 4 ”||875 LF||39.8 LF||14.6 LF|
|1 / 2 ” x 1 / 4 ”||750 LF||34.1 LF||12.5 LF|
|5 / 8 ” x 3 / 8 ”||410 LF||18.6 LF||6.8 LF|
|3 / 4 ” x 3 / 8 ”||280 LF||12.7 LF||4.7 LF|
|1” x 1 / 2 ”||195 LF||8.9 LF||3.3 LF|
PRODUCT FACTS FOR CONCEAL LOG CAULK FOR WOOD
|Shelf Life||3 Year|
|Application Temperature||4˚C – 32˚C|
|Elongation @ Break||550%|
|Application Methods||Chink Gun|
SURFACE PREPARATION NOTES:
Best results are obtained when Conceal is applied to wood that has been previously coated with a compatible and thoroughly cured stain.
Conceal is not a chinking and should be used only in joints under 2” wide. If the joints are wider, we recommend Log Jam.
It is always best to install backer rod before caulking. Sashco strongly recommends the use of backer rod, especially if the home is new and/or the wood is subject to significant movement.
Logs tend to take on water from rain and snow through cracks and checks; therefore, it is important to pay close attention to these openings and prep and seal them properly. Note: Most small checks should not be caulked. Only the larger ones (1/4” or larger) should be sealed with backer rod and caulk.
BEST CONCEAL TEXTURED CAULK FOR WOOD APPLICATION USES:
- Log Stacking
- Filling Joints Between Logs
- Sealing Around Windows and Doors
- Filling Checks
CONCEAL TEXTURED CAULK FOR WOOD APPLICATION NOTES
When using 5-gallon pails, the Cox Bulk Loading Gun should be used. Use a caulking gun when using either the 29 oz. or 10.5 oz. cartridges of Conceal Textured Caulk for Wood. When using a cartridge, cut the spout at a 45˚ angle to desired bead size. Conceal requires no heating prior to application but will dispense easier when kept warm before use.
Conceal should be tooled directly after application to ensure good adhesion and a smooth looking bead. To ease the tooling process, mist Conceal with water. Conceal may be tooled with a damp foam paint brush. Work the material smooth, tooling Conceal tightly to the surfaces. Keep a rag handy for clean up.
Conceal is Stainable with latex coatings after a minimum of 24 hours curing (longer on wider joints) and after 5 days curing with most oil-based coatings.
CLEAN-UP & DISPOSAL
Clean excess product off surfaces (before it cures) with a putty knife and/or a damp rag. Dispose of Conceal in accordance with local regulations. Do not dispose waste in drinking water supplies. Soap and water may be used for cleaning hands, surfaces and equipment. Solvents are not required for clean-up
Chinking and Sealant Calculator
What happens if I go less width than what the manufacturer recommends?
Not all logs on your home move at the same rate, some may move a lot and others barely anything. When they make the recommendation they figure out the most movement you would see out of two logs touching each other and recommend a joint size that will allow the stretch to happen without failure. Some people want the joint to be smaller due to cost or the look. If you took a 1.5" recommendation and went with 1" instead, you will notice a few more repairs over the years if you get two logs that really move. You are not likely to see failure everywhere if you were deep enough with the joint in the first place ( notice we are talking depth here...not the initial joint width question)
The smaller you make the width the more likely you will see failures or separation. In our experience we have seen good results if people use 2/3 of the recommendation...but we don't recommend pushing it further than that.
Not all logs on your home move at the same rate; some may move a lot and others barely at all. When they make the recommendation they figure out the most movement you would see out of two logs touching each other factoring in the size of the logs. They recommend a joint size that will allow the stretch to happen without failure. The sealants and chink are designed to strech 2.5x the joint size before failing. Big logs overall move more so require a bigger joint. If you short it too much there may not be enough material to handle the log movement.
Some people want the joint to be smaller due to cost or the look.
For Example: If you took a 1.5" recommendation and went with 1" instead, you will notice a few more repairs over the years if you get two logs that really move. You are not likely to see failure everywhere if you were deep enough with the joint in the first place ( notice we are talking depth here...not the initial joint width question) The smaller you make the width the more likely you will see failures or separation. In our experience we have seen good results if people use at least 2/3 of the recommended joint size...but we don't recommend pushing it further than that.
Most manufacturers recommend 15% of the log diameter for joint size after the first drying season and up to 20% if it's in the first drying season.
Example: 10" log diameter x 15% = 1.5" recommended joint size
Want to go less? You can, but learn more if that is a good decision for you.
Take each wall and multiply by the number of rows of sealant high.
Example 40' long wall x 9 rows high= 360 lf . Then add your lineal footage from each wall together.
For corners add 30% to your height measurement.
For gable ends, count your rows and estimate each for length, then add together.
Log Sealants are designed to stretch as your logs move. They need an appropriate width as above, but even more important they require enough depth (material) so as not to fail.
Joint Width 1/2" or less= 1/4" depth
Joint Width 5/8" or greater= 3/8" depth up to 1/2" Learn More about playing with depth
*Note: Quantities are based on the provided measurements. Actual product required can vary based on real life thickness used and contours of the logs. All calculations based on the use of backer rod
